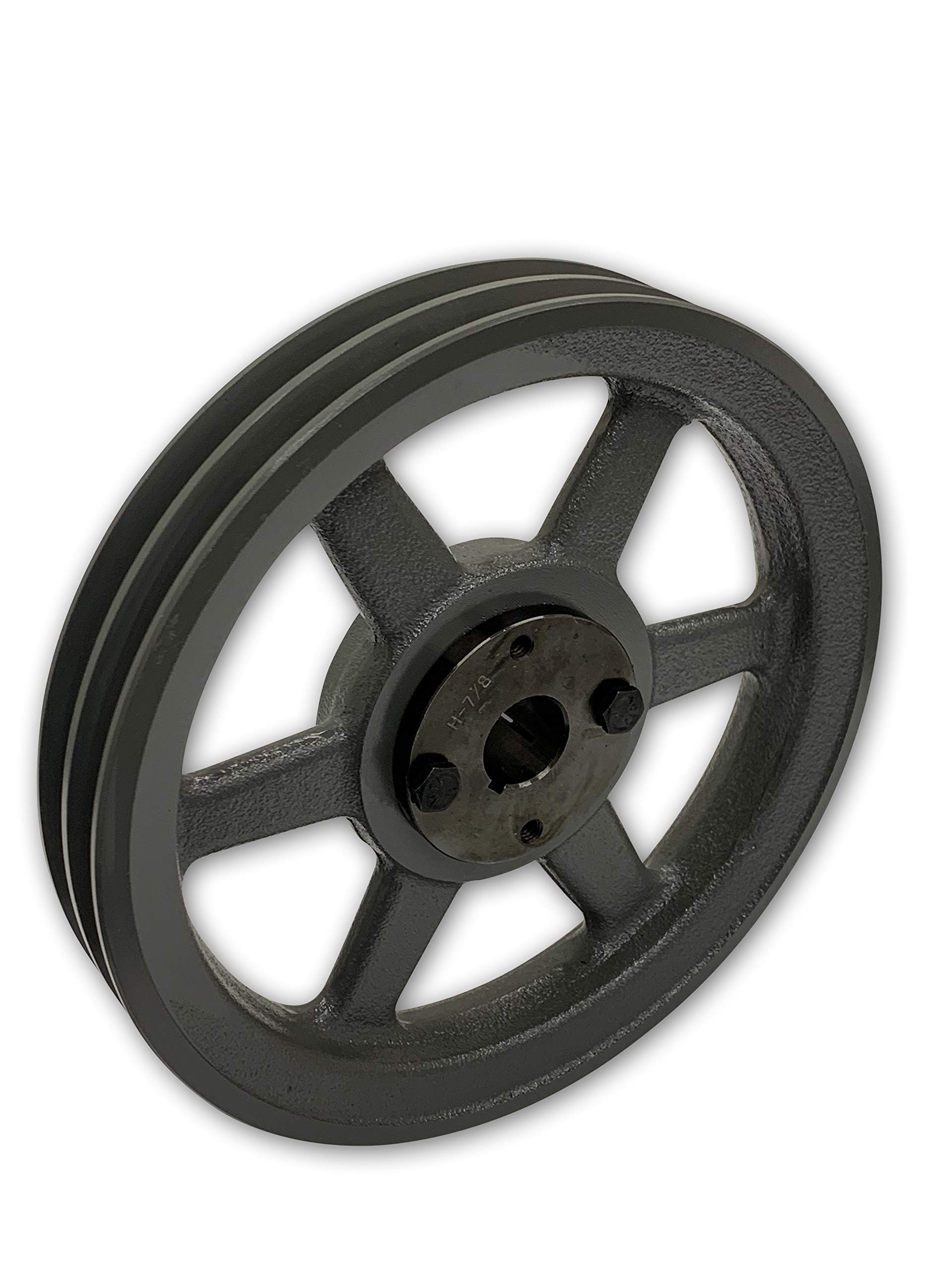

14.25" Double Groove Cast Iron V-Belt Pulley for Electric Motors - 3/8" & 1/2" Top Width - Compatible with 3L/A/AK/4L/4LK Belts - Includes Bushing (0.875" Bore for 7/8" Shaft) - Perfect for Industrial Machinery, HVAC Systems & Power Transmission Equipment
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:13 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:72510239
Product Description
Cast Iron Pulley with smooth-surface engineered for rigorous use, long life and minimal maintenance. This is a piece bushing style pulley that includes the H pulley and Tapered H bushing. Electric motor frame size guide. ...... 5/8" Shaft diameters are found on 56, 56H, 56Y Frame motors ........ 7/8" Shaft diameters are found on 56HZ, 145T, 182Y Frame motors.......... 1-1/8" Shaft diameters are found on 182T and 184T frame motors.......... 1-3/8" Shaft diameters are found on 213T and 215T frame electric motors.
Product Features
14.25" OUTSIDE DIAMETER , FITS 7/8" SHAFT DIAMETER. 1/4 KEYWAY IS STANDARD FOR 1-1/8" SHAFT, 182T & 184T FRAME MOTORS. KEYWAY NOT INCLUDED.
THIS CAST IRON DOUBLE GROOVE PULLEY TAKES 2 BELTS AND INCLUDES THE " H " STYLE TAPERED BUSHING.
GROOVES WILL FIT THE FOLLOWING V-BELT TYPES ( 3/8" TOP WIDTH 3L / 3LK) (1/2" TOP WIDTH 4L / 4LK / A / AK / AX )
THE TAPERED BUSHING LOCKS ONTO YOUR MOTOR SHAFT AS YOU SCREW DOWN THE LOCK SCREWS, RESULTING IN A SUPER TIGHT INDUSTRIAL TAPERED LOCK.
MOTOR PULLEY IS MADE OF CAST IRON, THE H BUSHING IS MADE FROM C45 STEEL WITH BLACK OXIDE FINISH.
